Technical Specifications
Compact Adjustable Fast Charging with Flexible Control
The PEVcharge PEV-2500-18 is a compact adjustable fast charger with an output voltage range of 126V-177V.
With 220V AC input, the charging current can be adjusted from 1A to 18A. With 110V AC input, the charging current can be adjusted from 1A to 9A.
The charger supports both Bluetooth connection adjustment and touch screen adjustment. Its compact size and lightweight body make it easier to store, carry, and transport.
This is not a universal charger. Compatibility with any battery or vehicle must be confirmed before ordering or use.
Key Highlights
- Compact adjustable PEV fast charger
- Adjustable output voltage: 126V-177V
- Adjustable charging current: 1A-18A with 220V AC input
- Adjustable charging current: 1A-9A with 110V AC input
- Bluetooth connection adjustment
- Touch screen adjustment
- Included charging cable: XT90-XT60
- Included charging-port connectors: 3-Pin to XT60 + 4-Pin to XT60 + 5-Pin to XT60
- All three charging-port connectors are included together
- AC plug options: US / EU / UK / AU, choose one when ordering
- Protective portable carrying case included
- Size: 21 × 10 × 4.3 cm
- Bare unit weight: approximately 1384g
- 6-month warranty for normal use
Adjustable Output Voltage
The PEV-2500-18 supports an adjustable output voltage range of 126V-177V.
The battery’s required actual full-charge voltage must be confirmed before the charger is connected or used.
A vehicle’s advertised voltage may be a nominal battery voltage rather than its actual full-charge voltage. Do not select this charger only according to a vehicle name, model name, nominal voltage, or information shown in an advertisement.
The fact that a battery’s required voltage is within the charger’s adjustable output range does not, by itself, confirm compatibility.
Charging connector type, connector wiring, polarity, BMS charging-current limit, charging-port current limit, cable rating, and adapter rating must also be verified.
Included Charging-Port Connectors
This product includes the following three charging-port connector adapters:
- 3-Pin charging-port connector to XT60
- 4-Pin charging-port connector to XT60
- 5-Pin charging-port connector to XT60
The three charging-port connectors are included together. They are not separate connector options.
Each included charging-port connector is provided with an XT60 connection for use with the included charging cable.
The pin count describes only the physical connector configuration. It does not indicate the charging voltage, polarity, wiring arrangement, or supported charging current.
A connector with the same appearance or pin count is not automatically compatible. Connector wiring and polarity must be confirmed before use.
If the connected product uses a different charging connector, a separate correctly wired adapter may be required. Any additional adapter must support the selected voltage and charging current.
Included XT90-XT60 Charging Cable
This product includes an XT90-XT60 charging cable.
The XT90-XT60 charging cable and the three charging-port connector adapters are separate parts of the charging connection system.
The included 3-Pin, 4-Pin, and 5-Pin charging-port connectors are each converted to an XT60 connection for use with the included charging cable.
Before charging, confirm that the selected charging-port connector, XT60 connection, cable, vehicle charging port, wiring, and polarity are correctly matched.
Do not use a cable, connector, or adapter that is not rated for the selected output voltage and charging current.
AC Plug Options
The AC power cable can be selected according to the customer’s region.
- US Plug
- EU Plug
- UK Plug
- AU Plug
Please choose one AC plug option when placing your order.
Protective Portable Carrying Case Included
Each charger includes a protective portable carrying case for storing and transporting the charger and its included accessories.
The carrying case helps keep the charger, charging cable, charging-port connectors, and AC power cable organized during storage and transport.
Adjustable Charging Current
The available adjustable charging-current range depends on the AC input voltage:
- With 220V AC input: 1A-18A adjustable charging current
- With 110V AC input: 1A-9A adjustable charging current
The selected charging current must not exceed the limits of the battery, BMS, vehicle charging port, connector, adapter, or charging cable.
The charger’s maximum available current does not mean that every connected battery or vehicle can accept that current.
A lower charging current can be selected when the battery or charging system does not support a higher current. Higher-current charging should be used only after the complete charging system has been verified.
Actual charging performance may also depend on the wall outlet, electrical circuit, input voltage, available input power, BMS limit, vehicle charging limit, charging-port rating, connector rating, and cable rating.
Bluetooth and Touch Screen Adjustment
The PEV-2500-18 supports both Bluetooth connection adjustment and touch screen adjustment.
Charging settings can be adjusted through the supported Bluetooth connection or directly through the charger’s touch screen.
Before starting each charging session, confirm that the selected output voltage and charging current are correct for the connected battery and charging system.
Compact and Lightweight Design
The charger measures approximately 21 × 10 × 4.3 cm and has a bare unit weight of approximately 1384g.
Its compact size makes it easier to store, carry, and transport while providing adjustable voltage and current control.
Specifications
| Brand | PEVcharge |
| Model | PEV-2500-18 |
| AC Input | 110V-240V AC, 50/60Hz |
| DC Input | 220V-400V DC |
| Adjustable Output Voltage | 126V-177V |
| Output Current With 220V AC Input | 1A-18A adjustable |
| Output Current With 110V AC Input | 1A-9A adjustable |
| Size | 21 × 10 × 4.3 cm |
| Bare Unit Weight | Approximately 1384g |
| Adjustment Methods | Bluetooth connection adjustment / touch screen adjustment |
| Included Charging Cable | XT90-XT60 |
| Included Charging-Port Connectors | 3-Pin to XT60 + 4-Pin to XT60 + 5-Pin to XT60 |
| AC Plug Options | US / EU / UK / AU, choose one |
| Storage | Protective portable carrying case included |
| Compatibility Requirement | Full-charge voltage, connector, wiring, polarity, BMS limit, charging-port limit, and cable rating must be confirmed before use |
| Warranty Period | 6 months |
Compatibility Checklist
Before ordering or connecting the charger, confirm all of the following:
- Actual full-charge voltage of the battery
- Charging-port connector type
- Connector wiring and polarity
- BMS maximum charging-current limit
- Vehicle charging-port current limit
- Charging cable and adapter current rating
- Available AC input voltage and electrical circuit capacity
Do not rely only on the vehicle’s nominal voltage, product name, model name, connector appearance, or connector pin count.
If any compatibility information is unclear, please contact customer service before ordering.
Important Safety Notice
Confirm the battery’s actual full-charge voltage, charging-port connector, connector wiring, polarity, BMS limit, charging-port rating, adapter rating, cable rating, and maximum supported charging current before ordering or use.
Do not use an incorrect output-voltage setting or unsupported charging current. Incorrect settings or incompatible connections may damage the battery, charger, charging port, connector, adapter, cable, or vehicle.
Do not assume compatibility only because the required voltage appears to be within the charger’s adjustable output range.
This charger should be used only by customers who understand their battery and charging-system requirements.
If you are unsure about any setting or connection, stop using the charger and contact customer service for confirmation.

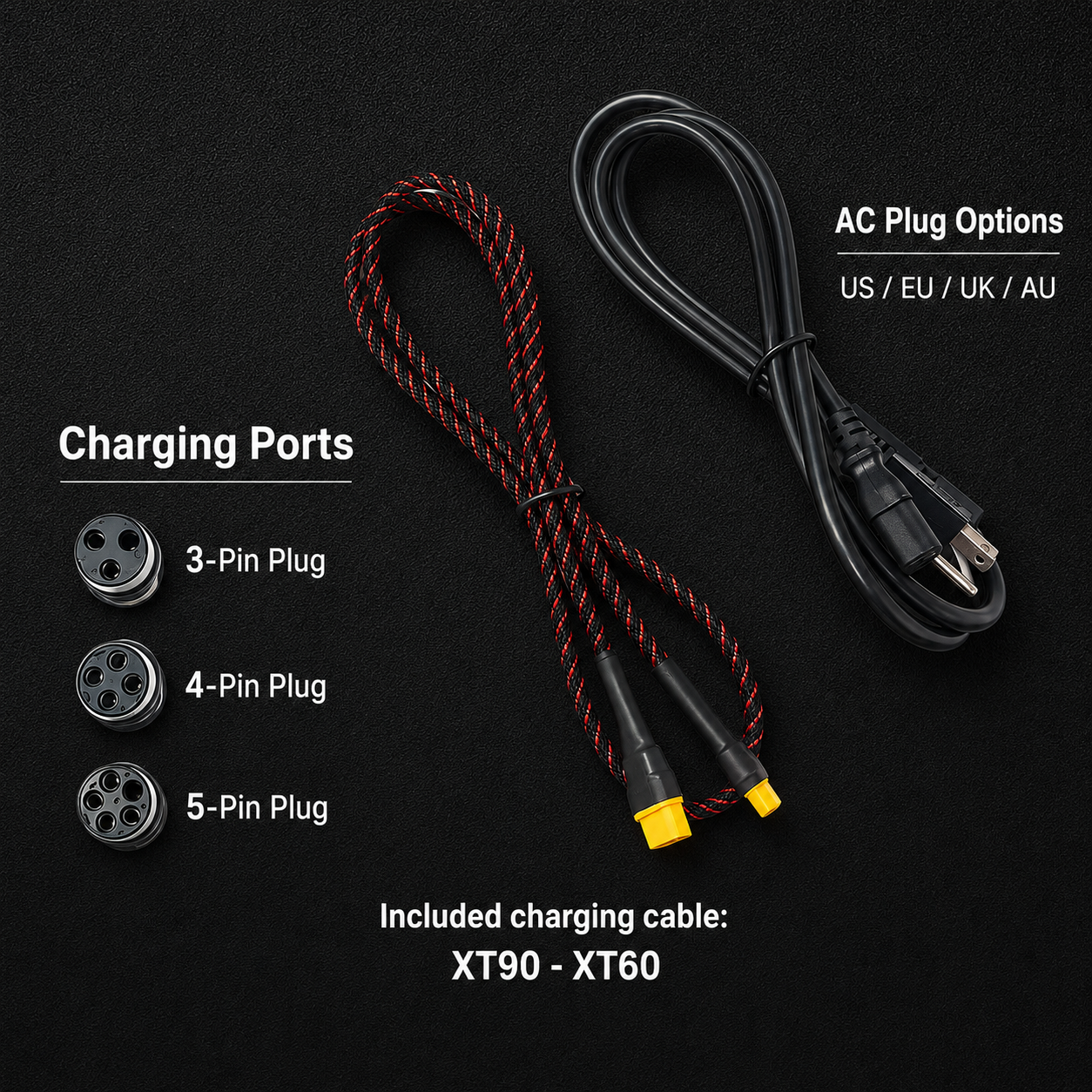

What’s Included
- 1 × PEVcharge PEV-2500-18 Charger
- 1 × XT90-XT60 Charging Cable
- 1 × 3-Pin to XT60 Charging-Port Connector
- 1 × 4-Pin to XT60 Charging-Port Connector
- 1 × 5-Pin to XT60 Charging-Port Connector
- 1 × Selected AC Power Cable: US / EU / UK / AU, depending on the selected option
- 1 × Protective Portable Carrying Case
Electric unicycles, electric scooters, electric motorcycles, e-bikes, batteries, display devices, and additional adapters or accessories shown in product images or videos are for demonstration reference only and are not included unless clearly listed above.
Shipping Notice
Shipping cost calculated at checkout.
Shipping availability and cost depend on the delivery address and selected shipping method. Some areas may not be available for delivery or may require additional shipping fees.
For special regions or unclear delivery areas, please contact customer service before ordering.
Warranty
This charger includes a 6-month warranty. Warranty coverage applies to normal use only.
Warranty does not cover damage caused by incorrect voltage settings, unsupported charging current, incorrect connector wiring, wrong polarity, misuse, water damage, physical damage, unauthorized modification, unsuitable adapter or cable use, or use with incompatible products.
